HF – 525 PLUS

HF – 525 PLUS

FEATURES

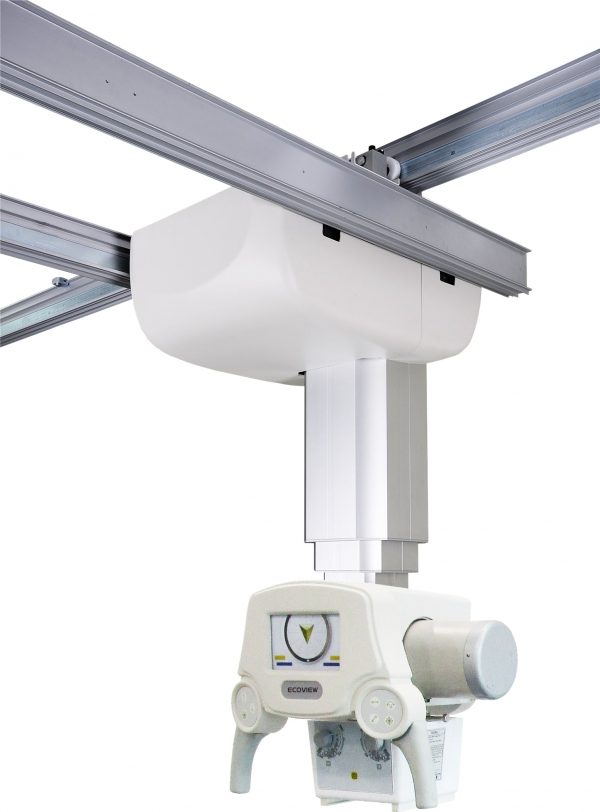

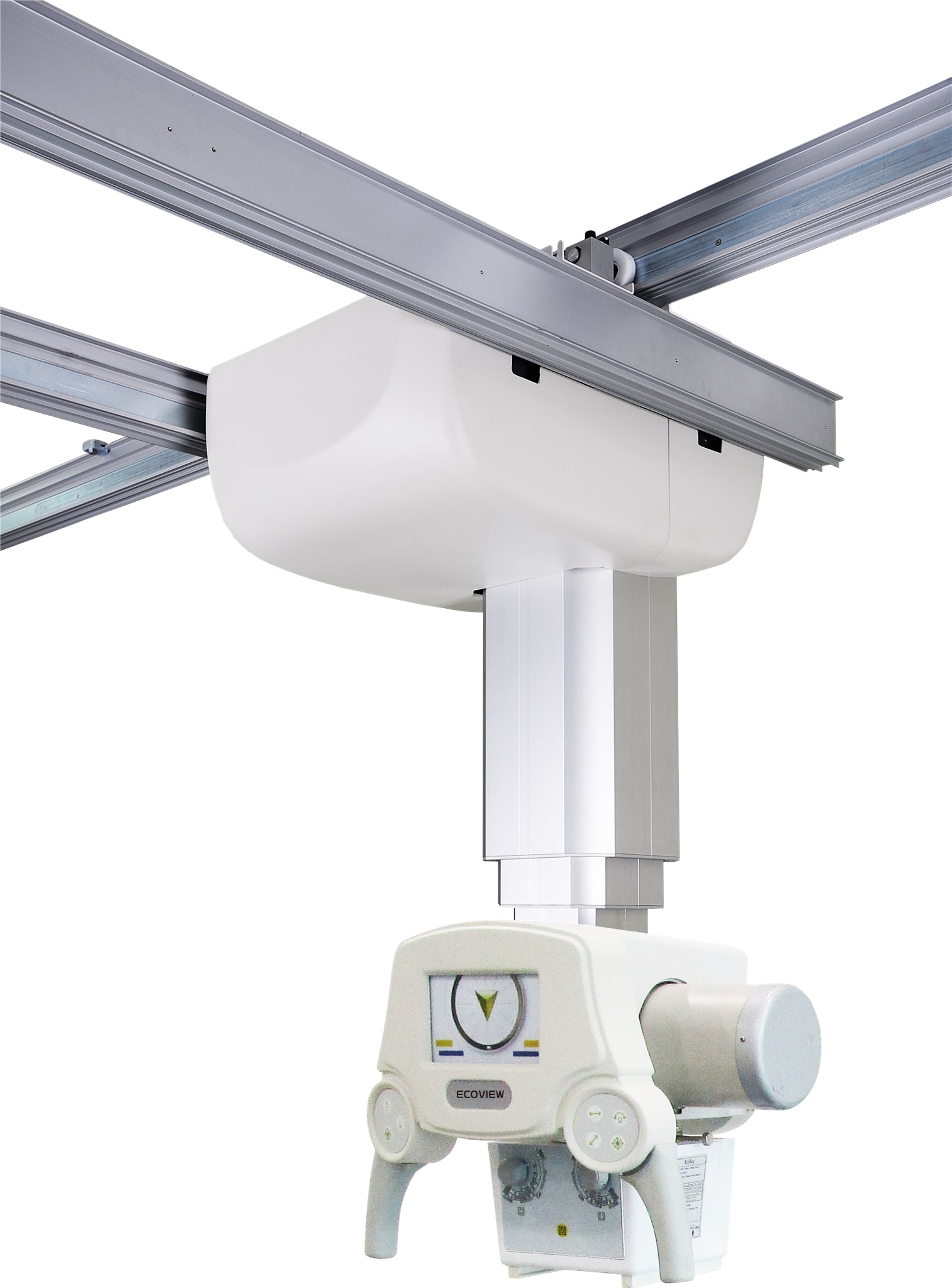

  • CEILING SUSPENDED TUBE STAND
Type: Manual Ceiling suspended
Longitudinal travel: Approx. 2,000mm or more
(depends on the ceiling rail length)
Transverse travel: Approx. 3,000mm or more
(depends on the ceiling rail length)
Vertical tube travel: Approx. 1,500mm
(900 ~ 2,400mm from the ceiling to Focal Spot)
X-ray tube rotation: +/- 180° (detents at +90° ~ -90°)
Tube stand column rotation: +/- 180° (detents at +90° ~ -90°)
Locks: Electromagnetic brakes
Tube arm controls: Longitudinal, transverse, vertical,
and rotational lock control buttons
Handlebar display: Goniometer / Optional LCD Touch screen (kV, mAs and angle)

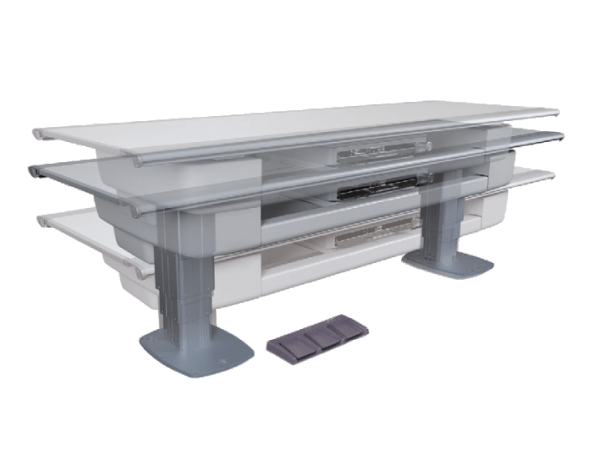

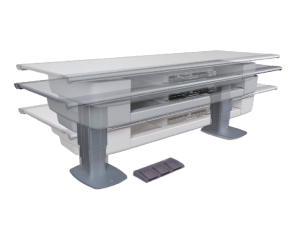

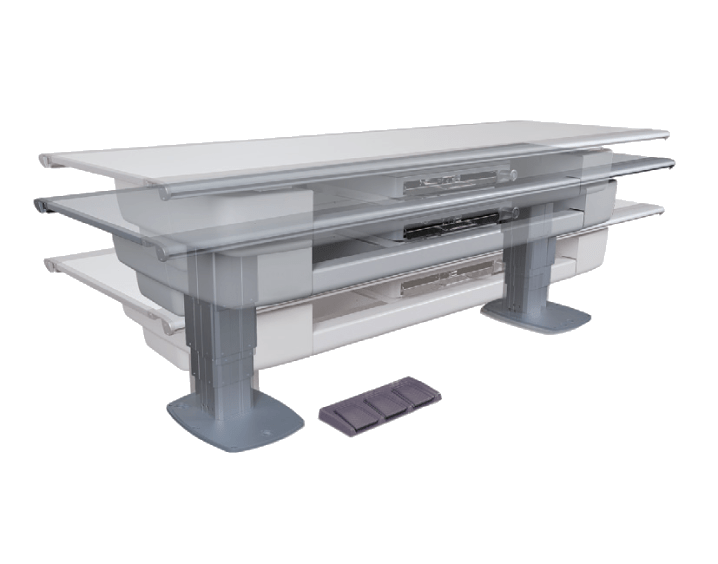

  • ELEVATING TABLE

6-way table provides easy and quick patient positioning. Also, the Smooth movement of the large floating tabletop is given. Rugged modular construction is for continuous heavy usage as well. Radiolucent table with side rails for accessory and attachment.

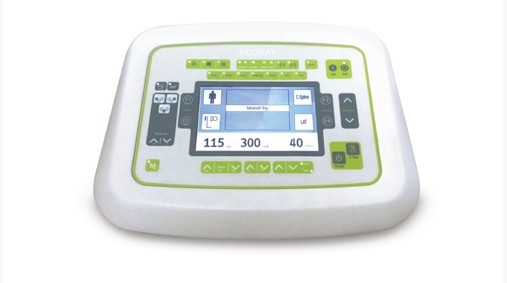

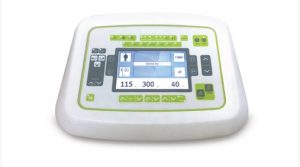

  • LCD OP CONSOLE

For Better technique selection. Three-factor techniques can be selected from the 7″ LCD display (KVp, mA, mAs). Single-touch anatomical programs bring easy parameter selection and flexibility: up to 288 anatomical program settings

Please click the below button for download



Categories: , ,

Description

SPECIFICATION

  SYSTEM 1 SYSTEM 2 SYSTEM 3 SYSTEM 4 SYSTEM 5 SYSTEM 6

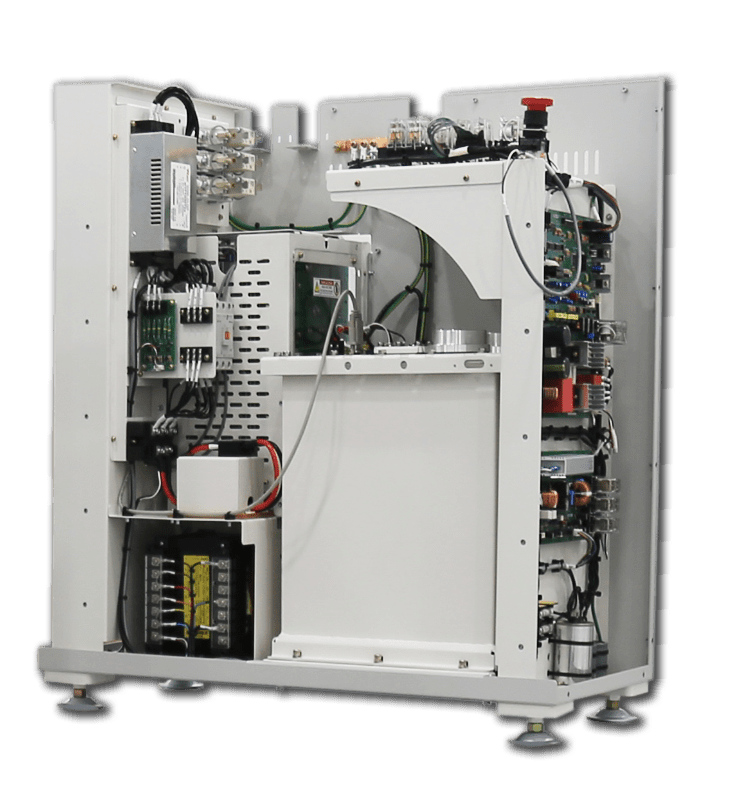

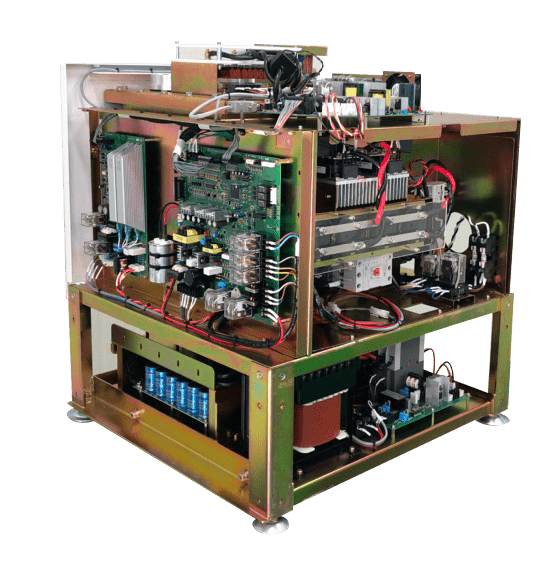

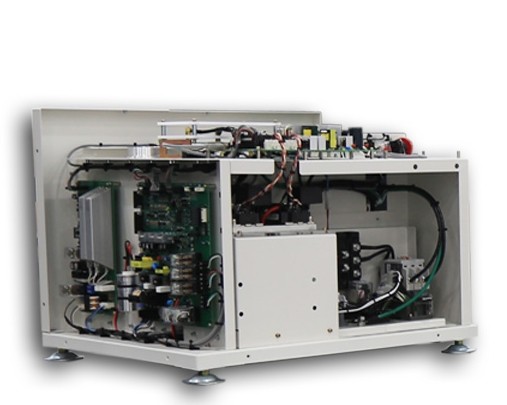

HFG 32kW 40kW 50kW 50kW 65kW 80kW
POWER OUTPUT 125 kV 150 kV
Max. mA 400 mA 500 mA 630 mA 800 mA 800 mA 1000 mA


LINE VOLTAGE

 220V-230VAC, 50-60Hz, Single Phase 380VAC, 50-60Hz, Three Phase
CONTROLLER Invertor Type
TUBE 140kHU 300kHU 400kHU
TUBE STAND Floor Mounted Type
BUCKY TABLE 4 Way Floating Top Bucky Table
BUCKY STAND Wall Bucky Stand
O/P CONSOLE FnD console

LCD console

SUMMARY

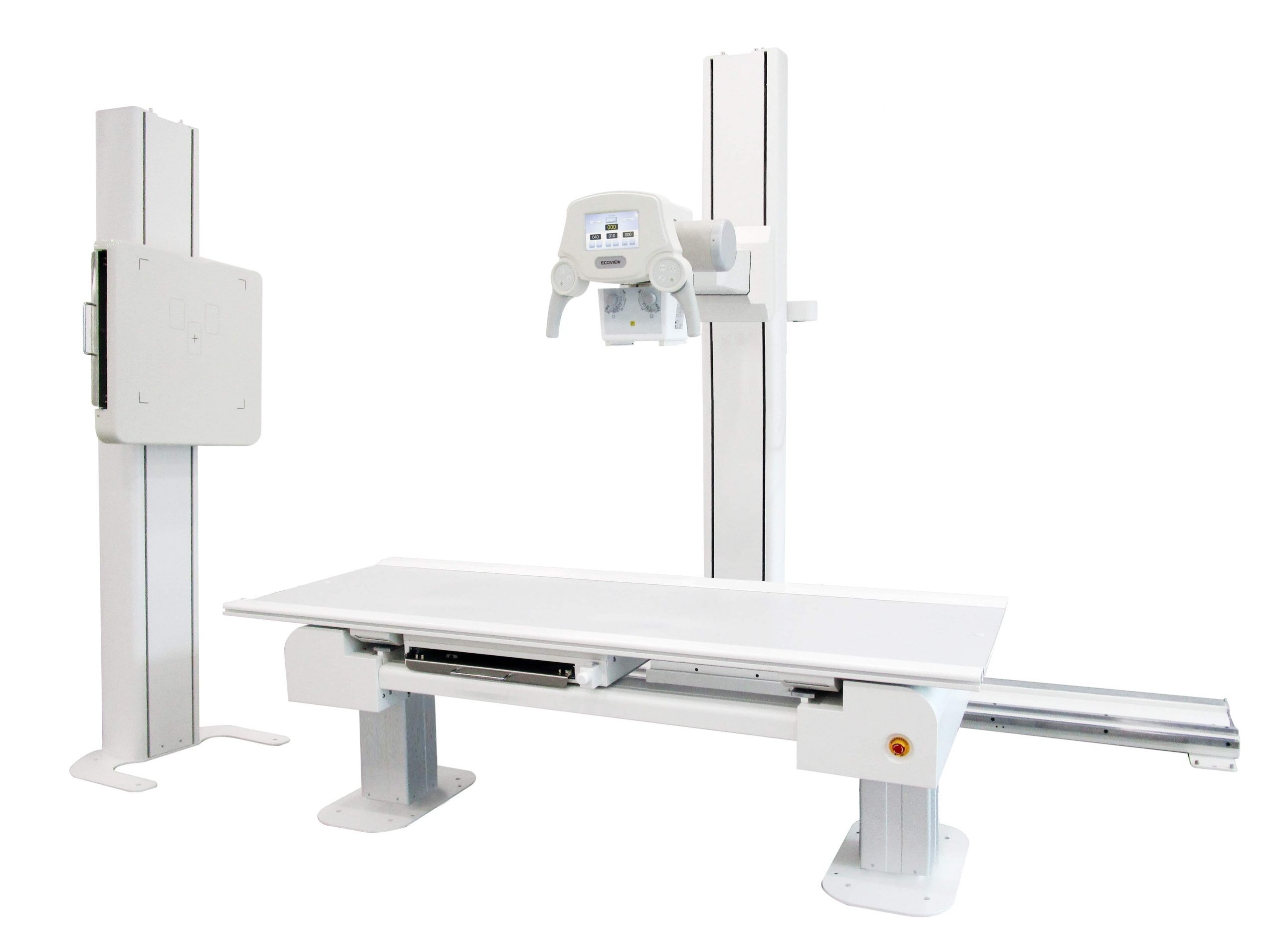

The HF-525PLUS is an affordable and dependable general radiographic system designed for flexibility and friendly use in all general radiographic procedures, it can also be custom-configured to your specific clinical requirements, including chest, spine, complete skeletal, abdominal, urological and studies
