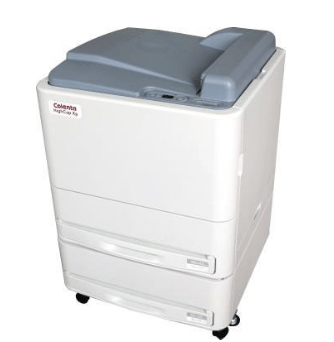

COLENTA Dicom Printer HighCap Xp

Dry Laser Imager – High Efficiency – Mammo Applicability

Processing Capacity: up to 80 films/hr, size 35×43 cm (14″ x 17″) helps to reduce patient’s waiting time, increasing efficiency of examination workflow.
Printing Resolution – Pixel Size: up to 508 dpi (50µm), allows printout of Mammo Images
Two Film Tray Online: 2 universal film trays enabling printing of two different sizes at the same time
Colenta DICOM Printer HighCap Xp to be used with Colenta Dry Laser Films to obtain maximum quality print out of examination images.

Description

Colenta HighCap Xp Specifications :

Recording method
Laser exposure thermal development system
Applicable film
MEDIPHOT DRY IMAGING FILM DL (100/150 sheets/pack)
35cm x 43cm (14” x 17”), 26cm x 36cm (10” x 14”),
25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
MEDIPHOT DRY IMAGING FILM DLM for Mammography (150 sheets/pack)
26cm x 36cm (10” x 14”), 25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
Film loading
Daylight film loading
Film magazines
Up to 5 trays (2 trays online + 3 trays offline)
Processing Capacity
approx. 80 sheets/hour 35cm x 43cm (14” x 17”)
approx. 100 sheets/hour 20cm x 25cm (8” x 10”)
Pixel size
50 um (508 dpi) / 100 um (254 dpi)
Recording gradation
14 bits (16383)
Image memory
1GB
Density Adjustment
Automatic density correction
Input channels
DICOM network input (max. 10 simultaneous connection associations)

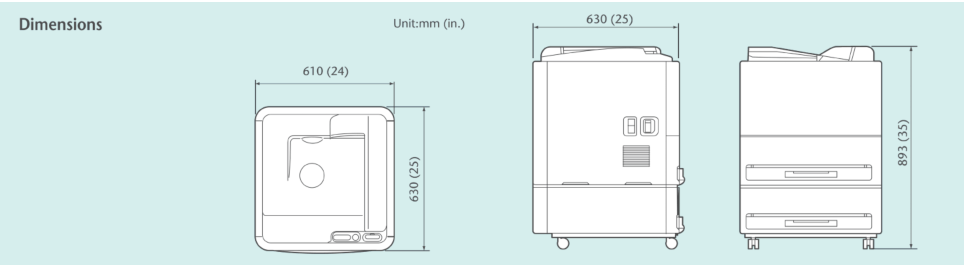

Dimensions (WxDxH)
610mm x 630mm x 893mm (24” x 25” x 35”)
Weight
104 kg (229.3 lbs.)
Power Supply Conditions
Single phase 50-60Hz, AC100-240V ±10%
Operating Conditions
Temperature: 15 to 30°C (59 to 91°F)
Humidity: 15 to 70% rH, non-condensing
Atmospheric pressure: 750 to 1060 hPa
