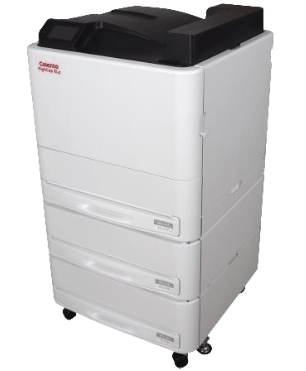

COLENTA Dicom Printer HighCap XLp

Dry Laser Imager – High Efficiency – Mammo Applicability

Processing Capacity: up to 110 films/hr, size 35×43 cm (14″ x 17″) helps to reduce patient’s waiting time, increasing efficiency of examination workflow.
Printing Resolution – Pixel Size: up to 508 dpi (50µm), allows printout of Mammo Images
Two Film Tray Online : 3 universal film trays enabling printing of 3 different sizes at the same time
Colenta DICOM Printer HighCap XLp to be used with Colenta Dry Laser Films to obtain a maximum quality printout of examination images.

Description

HighCap XLp Specifications :

Recording method
Laser exposure thermal development system
Applicable film
MEDIPHOT DRY IMAGING FILM DL (100/150 sheets/pack)
35cm x 43cm (14” x 17”), 26cm x 36cm (10” x 14”),
25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
MEDIPHOT DRY IMAGING FILM DLM for Mammography (150 sheets/pack)
26cm x 36cm (10” x 14”), 25cm x 30cm (10” x 12”), 20cm x 25cm (8” x 10”)
Film loading
Daylight film loading
Film magazines
Up to 3 trays online
Processing Capacity
approx. 110 sheets/hour 35cm x 43cm (14” x 17”)
approx. 160 sheets/hour 20cm x 25cm (8” x 10”)
Pixel size
50 um (508 dpi) / 100 um (254 dpi)
Recording gradation
14 bits (16383)
Image memory
1GB
Density Adjustment
Automatic density correction
Input channels
DICOM network input (max. 10 simultaneous connection associations)

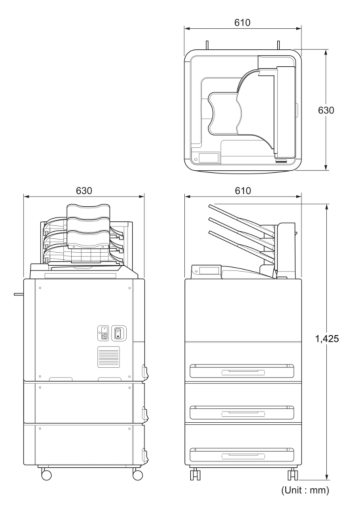

Dimensions (WxDxH)
610mm x 630mm x 1125mm (24” x 25” x 44”) – without sorter

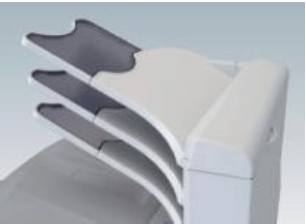

610mm x 630mm x 1425mm (24” x 25” x 56”) – with sorter
Weight
125 kg (275.6 lbs.)
Power Supply Conditions
Single phase 50-60Hz, AC100-240V ±10%
Operating Conditions
Temperature: 15 to 30°C (59 to 91°F)
Humidity: 15 to 70% rH, non-condensing
Atmospheric pressure: 750 to 1060 hPa
